Wallbox Pulsar Plus (Solar + Power Boost) 22kW

$1899

3 Phase

The Pulsar Plus (solar + powerboost) is a smart solution for charging any EV in Australia. Includes Power boost to adjust the power provided to your EV based on your real time energy load in the house. Slim design with halo RGB (Red, Green, Blue) status lights to let you know whether Pulsar is still charging your car or whether charging is already completed. Also has voice control with Amazon Alexa and Google Assistant devices

Looking for single phase, click here

Installation info

$1499*

*This price indicated is for a standard three-phase installation (with solar optimisation)

close

Three phase installation

  • Installation of a 22KW / 32 AMP Three Phase EV Wall Charger. House must have 3 Phase Capability.
  • Dedicated circuit approximately 20 Meters of wall/ceiling mounted cable. (Inc conduit)
  • Three Phase Isolation switch mounted readily accessible to the EV Wall Charger.
  • All associated electrical containment and hardware fixings for the installation.
  • 4 Pole Type A RCBO 30mA
  • Installation as per AS/NZS 3000:2018 Electrical Installation Wiring Rules.
  • Installation of a communications device the specifics of which will be determined on site (Preference 1: Ethernet cable, Preference 2: EoP)

Product features
Scheduled Charging (Optional)

Set your charging schedule through the app to charge only at certain times to take advantage of cheaper electricity tariffs, like AGL's Night Saver EV Energy Plan.

Solar-power enabled

Charge your EV using your home solar power system – or use the grid when there’s not enough sunlight.

Powerboost-enabled

Adjust the power provided to your EV based on your real time energy load in the house

Compatible with all EVs

Charge any plug-in vehicle using the Type 2 connector, without buying an extra cable

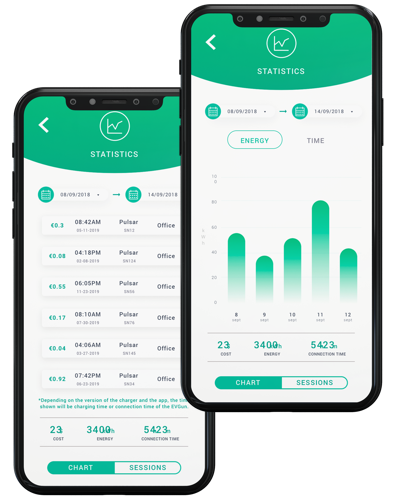

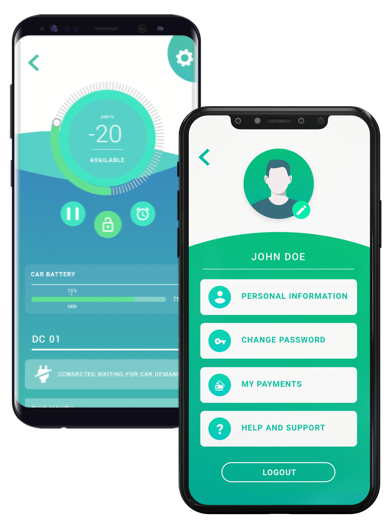

myWallbox app

Via Wifi or Bluetooth, View your car’s charge status, change your settings and monitor your Wallbox remotely – anywhere, anytime.

Voice Control enabled

Works with Amazon Alexa and Google Home voice assistants

Tethered cable

Save time connecting and disconnecting your charger with a tethered charging cable. Long 5m cable. 7m cable is also available ($150 extra).

Power
Charging power

22kW

Power requirements

Three-Phase

Rated supply voltage

400 V (11kW and 22kW)

Charging mode

Type 2 (IEC 62196-2)

Physical
Item dimensions

166 mm x 163 mm x 82 mm

Item weight

1kg

Weather resistant

Yes

Tethered

Yes

Cable length

5 metres (7m cable also available for an additional $150)

Communications
Communications interfaces

Wi-Fi, Bluetooth

Server protocol

OCPP 1.6J

Operating mode

Eco Modes

Warranty

3 years
